ALMCO Cabinet Spray Washers

Rotary spray washing that hits every side of the part, from economy cabinets to stainless production cells

Turntable: 29 in
Solution Tanks: 1
Spray Pumps: 1
Construction: Mild steel

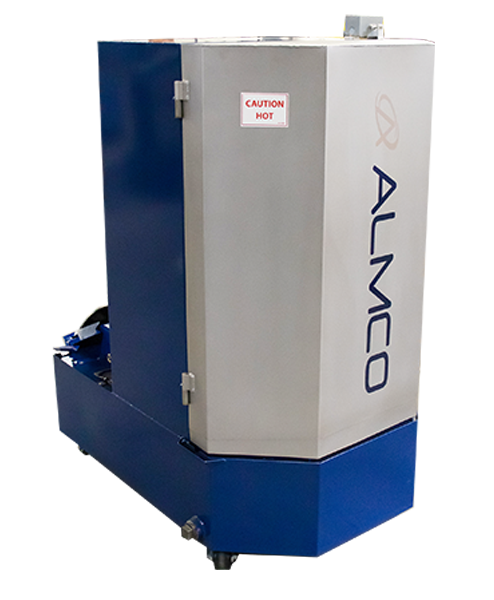

Economy Cabinet Washer

The most cost-effective rotary cabinet ALMCO builds. One solution tank, one spray pump, and a mild steel cabinet keep the price down while a 180 degree front swing door and a rotating turntable still deliver full spray coverage. Built for shops that want dependable cabinet washing without the options.

At a Glance

Turntable: 29 in
Solution Tanks: 1
Spray Pumps: 1
Construction: Mild steel

Wash System

Door: Front swing, opens 180 degrees
Turntable Drive: Variable speed
Spray Coverage: 360 degree
Chip Tray: Removable stainless steel

Tank & Controls

Wash Tank: Heated
Heater Protection: Float switch
Cycle Control: Process timer per wash cycle
Pump Power: TODO: verify
Power Supply: TODO: verify
Overall Dimensions: TODO: verify

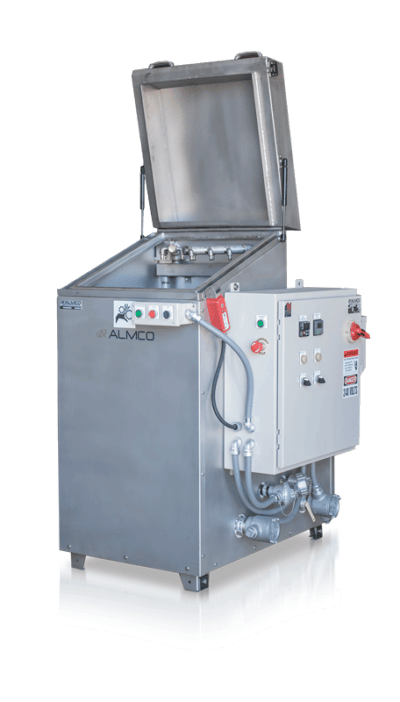

Rotary Top Washer

A lift-up top lid instead of a front door, so parts load from overhead straight onto the turntable. The turntable rotates the part through the spray nozzles for a full 360 degree wash, in stainless steel construction and three standard turntable sizes. A flexible fit for batch cleaning or a manufacturing work cell.

Range

Turntable Sizes: 20, 25, 36 in
Pump Power: 2 to 5 HP
Construction: Stainless steel
Power Supply: 230V or 460V

Model RTW-20

Turntable Diameter: 20 in
Pump: 2 HP
Overall Dimensions: 36 x 52 x 73 in

Model RTW-25

Turntable Diameter: 25 in
Pump: 3 HP
Overall Dimensions: 51 x 50.5 x 74 in

Model RTW-36

Turntable Diameter: 36 in
Pump: 5 HP
Overall Dimensions: 63.5 x 78 x 98.5 in

Wash System

Load Style: Lift-up top lid
Spray Coverage: 360 degree
Wash Tank: Heated
Heater Protection: Float switch
Chip Tray: Removable stainless steel
Cycle Control: Process timer per wash cycle
Safety: Interlock switch on lid and doors

Rotary Cabinet Washer

The fully optioned stainless cabinet. Six turntable sizes from 24 to 72 inches, upgraded controls, and a 180 degree front swing door give it a large work envelope and high weight capacity. Simple controls allow multiple wet and drying stages for a wide variety of part sizes and shapes.

At a Glance

Turntable Sizes: 24 to 72 in (six sizes)
Spray Coverage: 360 degree
Construction: Stainless steel

Wash System

Door: Front swing, opens 180 degrees
Turntable Drive: Variable speed (optional)
Wash Tank: Heated
Heater Protection: Float switch
Replenishment: Automatic water and compound
Exhaust: Vapor exhaust duct connections
Chip Tray: Removable stainless steel

Electrical & Dimensions

Cycle Control: Process timer per wash cycle
Pump Power: TODO: verify
Power Supply: TODO: verify
Overall Dimensions: TODO: verify

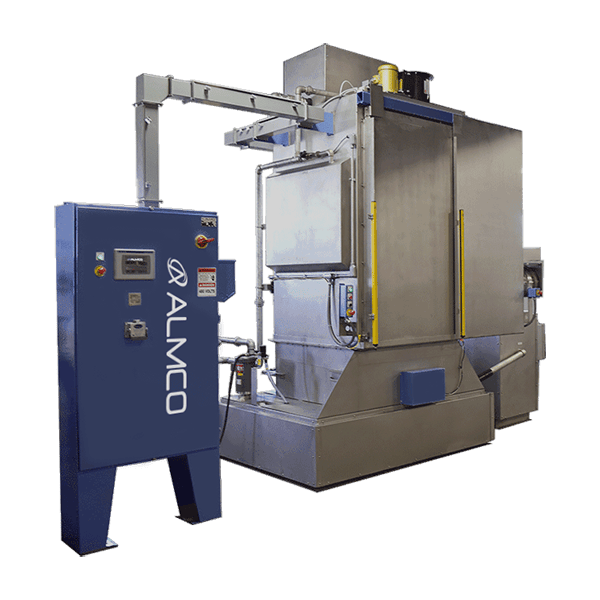

Rotary Parts Washer

Front-loading turntable washers engineered for efficient cleaning of industrial components with difficult-to-reach surfaces. Powered sliding doors close automatically once parts are loaded to contain spray. Adaptable for batch or continuous cleaning and can be configured for pass-through operation by combining into a continuous feed work cell. The fixturing capability allows spray to reach areas that standard cabinet washers cannot access.

Wash System

Loading: Front-loading turntable or platform
Door: Powered sliding, auto-close
Spray Coverage: 360 degree
Operation Modes: Batch or continuous

Options

Wash Stages: Multiple wash and rinse stages available
Turntable Drive: Variable speed available
Construction: Stainless steel available
Pass-Through: Configurable for continuous feed work cell

Features

Built In

A rotating turntable carries every side of the part through the spray nozzles, so a single cycle covers the whole part.
Heated wash tanks with float-switch heater protection and a removable stainless steel chip tray keep the solution hot and clean.
A process timer runs each wash cycle and automatic water and compound replenishment holds the solution at strength.
Step up from a mild steel economy cabinet to a fully optioned stainless cell with rinse, blow-off, filtration, oil skimming, and PLC touchscreen controls.

Applications

Where It Works

Batch parts cleaning
Degreasing before coating or assembly
Manufacturing work cells
Stainless production washing
