ALMCO Immersion Washers
ALMCO logo

ALMCO

ALMCO Immersion Washers

Tank agitation washing for parts that a spray cannot reach, from economy units to automated production

Load Capacity
Up to 340 lbs
Operation
Solvent or aqueous
Construction
Stainless or mild steel
Request a Quote

EAW Series

The most cost-effective immersion washer ALMCO builds. Parts ride a platform that lowers into the tank and agitates up and down to clean every surface, which is the answer for blind holes and complex shapes a spray jet cannot reach. Simpler controls and solvent or aqueous operation make it a fit for small shops.

EAW Series

At a Glance

Load Capacity
Up to 340 lbs
Operation
Solvent or aqueous
Construction
Stainless or mild steel

Wash System

Cleaning Action
Platform lowers and agitates up and down
Lid
Powered lift
Cycle Control
Timed operation
Wash Tank
Heated (aqueous models)

Electrical

Power Supply
240V single phase if heated; pneumatic if not heated
Tank Capacity
TODO: verify
Overall Dimensions
TODO: verify

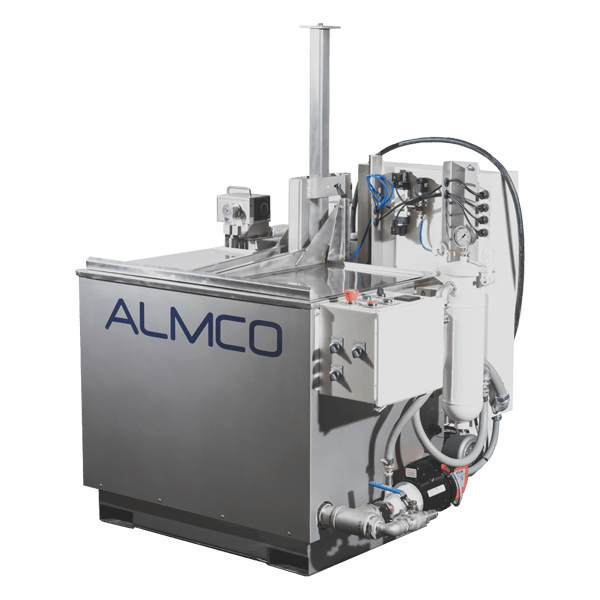

PW Series

The fully optioned immersion washer. Heavy-duty agitation, an upgraded electrical panel, and stainless construction handle single or batch cleaning, and the series drops into an automated production system with multiple stages, powered rollers, and parts sensors. Add ultrasonics and high-frequency sound waves reach into the toughest geometries.

PW Series

At a Glance

Load Capacity
Up to 1000 lbs
Operation
Aqueous
Construction
Stainless steel

Wash System

Agitation
Heavy-duty agitation units
Lid
Powered lift
Cycle Control
Timed operation
Wash Tank
Heated (aqueous models)
Automation
Multiple stages, powered rollers, parts sensors (optional)
Ultrasonics
Optional high-frequency cleaning

Electrical

Power Supply
3 phase
Electrical Panel
Upgraded
Tank Capacity
TODO: verify
Overall Dimensions
TODO: verify

Features

Built In

  • Submerging the part and agitating the tank reaches blind holes, recesses, and internal passages that a spray jet runs right past.
  • A powered lid lift and timed cycles make loading and running the wash repeatable batch after batch.
  • Step up from an economy EAW for a small shop to a stainless PW built into an automated line with powered rollers and parts sensors.
  • Optional ultrasonics add high-energy, high-frequency sound waves to clean the most demanding geometries.

Applications

Where It Works

  • Blind holes and complex internal geometries
  • Solvent or aqueous parts washing
  • Batch and single-part cleaning
  • Automated production washing
