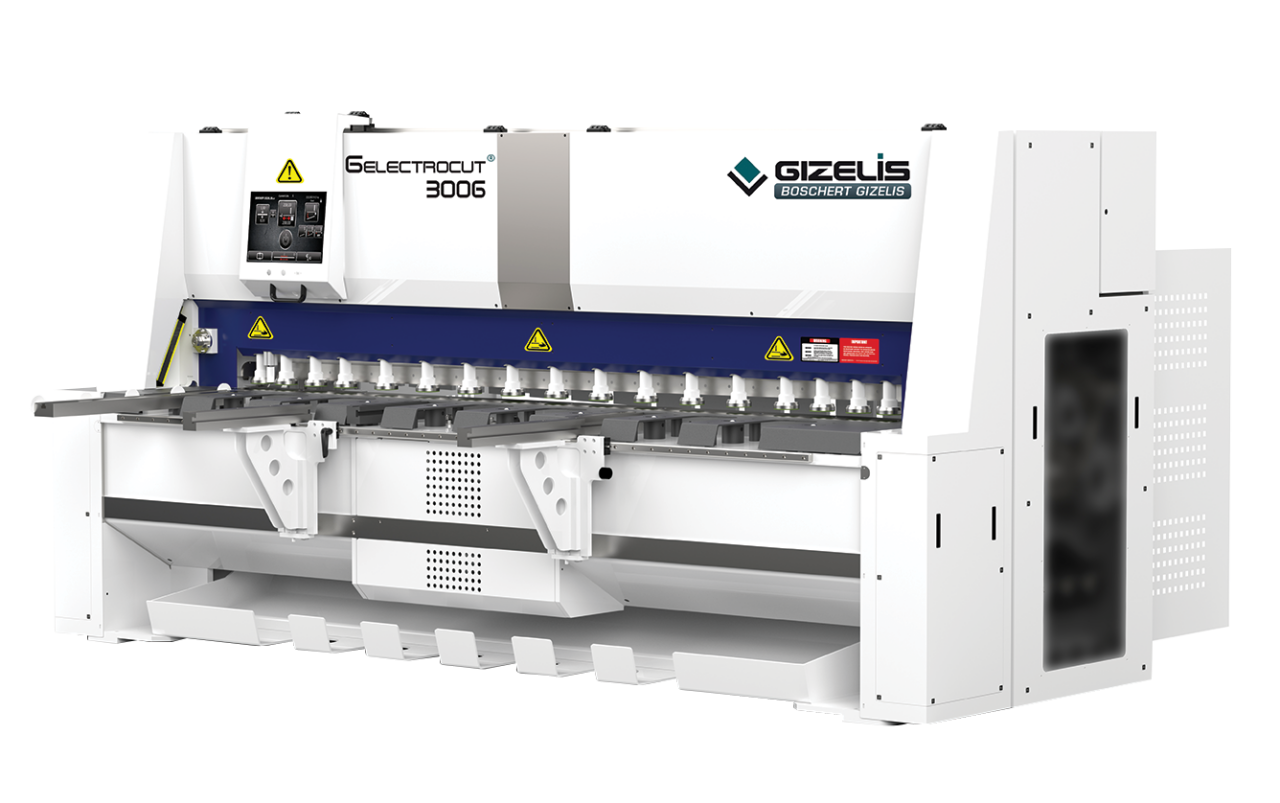

Boschert Gizelis ElectroCut Electric Shear Series

Globally patented servo-electric swing beam shear with variable rake angle, up to 40 cuts per minute and half the energy of a hydraulic shear

Models
G ElectroCut 2004, 2504, 3006, 4006
Max Cutting Thickness (mild steel)
4 / 4 / 6 / 6 mm
Max Cutting Thickness (stainless)
2 / 2 / 4 / 4 mm
Max Cutting Length
2000 / 2500 / 3000 / 4000 mm
Back Gauge Stroke
1000 mm
Cutting Angle (variable rake)
0.5 to 2.5 degrees
Request a Quote

Applications

Where It Works

  • Shops shearing mild and stainless sheet up to 4 meters that want to cut energy and oil out of the process
  • Variable-rake cutting tuned per material for the best force, speed, and edge quality
  • Return-to-front and narrow-strip cutting for faster, cleaner handling

Features

Built In

  • The newest servo-electric swing beam shear from a 50-year shear builder, globally patented, cutting up to 40 real cuts per minute while using up to 50% less energy than a hydraulic shear.
  • A variable rake angle sets itself from the material thickness through the control, balancing force, speed, and cut quality for any job.
  • A rectangular upper blade uses all four edges to double blade life, and a hybrid belt-and-pneumatic sheet support returns full-length pieces to the front.

Specifications

Technical Specs

Capacity

Models
G ElectroCut 2004, 2504, 3006, 4006
Max Cutting Thickness (mild steel)
4 / 4 / 6 / 6 mm
Max Cutting Thickness (stainless)
2 / 2 / 4 / 4 mm
Max Cutting Length
2000 / 2500 / 3000 / 4000 mm
Back Gauge Stroke
1000 mm
Cutting Angle (variable rake)
0.5 to 2.5 degrees

Controls

Control
Beijer X2 panel, 15 in color touchscreen, integrated HMI and PLC
Back Gauge
AC servo, programmable cutting length with linear encoder
Thickness
Automatic thickness measurement, auto clearance and rake angle
Modes
Manual, semi-automatic, or full automatic; recipes up to 16 lines

Machine

Type
Fully electric swing beam guillotine shear (globally patented)
Drive
AC servo motor, belt-pulley system
Guillotine Movement
Two high-resolution linear encoders
Blade
Rectangular upper blade, four usable edges
Hold-downs
Pneumatic, adjustable force
Main Motor
6 kW (2004, 2504), 8.5 kW (3006, 4006)
Weight
5,100 / 6,200 / 7,300 / 8,700 kg
Dimensions
2950 to 4950 mm (L) x 1400 mm (W) x 1950 mm (H)
Safety
Guillotine spring-mounted (moves up on failure)
