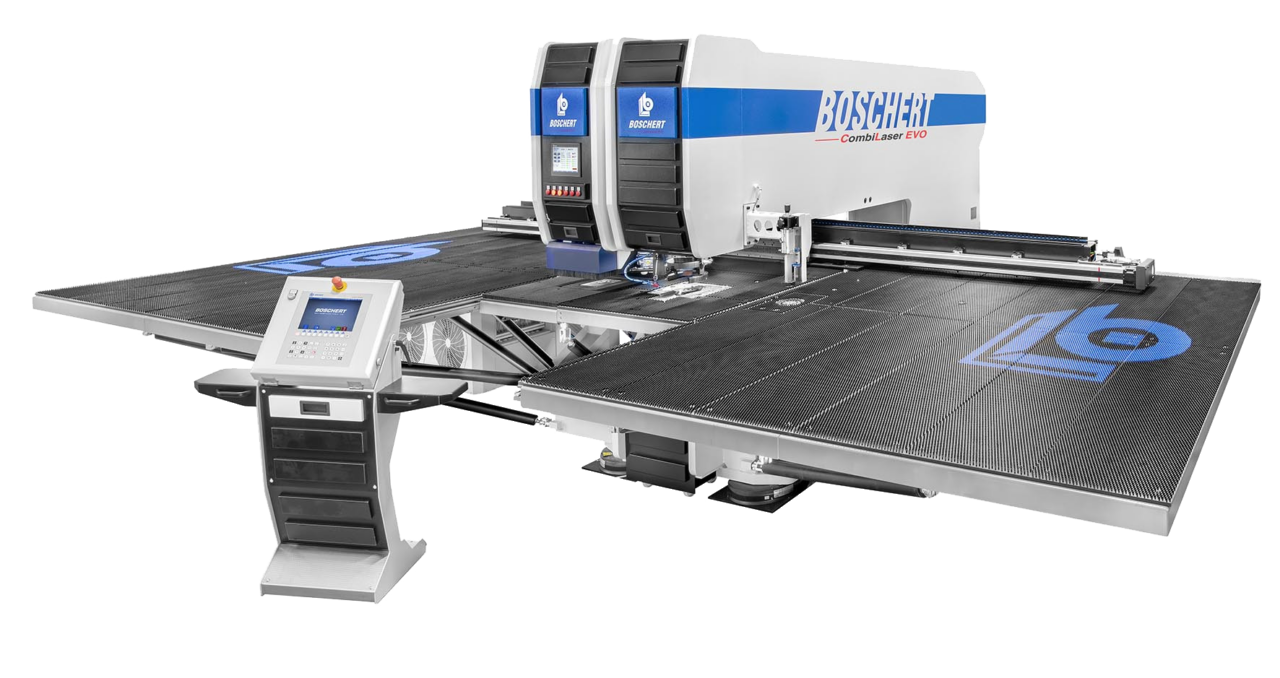

Boschert CombiLaser Punching and Fiber Laser Machine

Combined CNC punching and fiber laser cutting on one machine, so complex parts are punched, formed, and cut in a single setup

Applications

Where It Works

Shops combining punching and fiber laser cutting on one platform to cut handling and setups
Parts needing forming, beading, trimming, and threading alongside laser-cut contours
Producing complex parts on a single machine instead of a separate punch and flat-sheet laser

Features

The CombiLaser combines CNC punching with fiber laser cutting on one machine, so parts that once needed a flat-sheet laser plus a separate punch for forming, beading, trimming, and threading now run in a single setup.
Boschert's fiber laser mounts to any of its CNC punching machines, in Compact, TWIN, TRI, and Multipunch configurations, so shops buy exactly the platform they need.
Two CNC-controlled part chutes in front of the laser head unload finished parts automatically, and an XFocus fiber laser from IPG with a Precitec head cuts mild steel, stainless, and aluminium.

Specifications

Capacity

Controls

Tool Stations (max with Revotool): Compact 1 (8), TWIN 2 (16), TRI 3 (24), Multipunch 8 (64)
Positioning Speed: 60 m/min X and Y, 85 m/min simultaneous
Maximum Stroke Rate (punching): 750 per minute
Positioning Difference: +/- 0.10 mm
Repeatability: +/- 0.03 mm
Functions: Punching, forming, marking, fiber laser cutting

Machine

Space / Weight: 7000 x 5900 mm 14,500 kg to 9000 x 7100 mm 17,400 kg
Tool System: Trumpf
Laser Source: IPG fiber laser, Precitec cutting head (developed with Kjellberg Finsterwalde)
Part Removal: Two CNC-controlled part chutes in front of the laser head, 150 mm and 670 mm square
Dust Collection: Spark separator, temperature control, and extinguishing device standard
