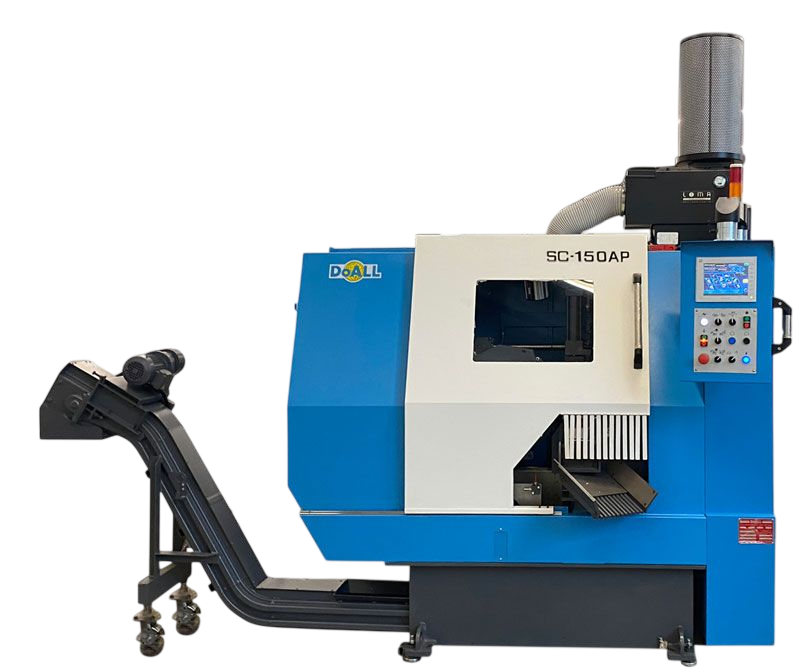

DoALL SC-150A Circular Saw

Heavy-duty circular saw with rigid frame construction for round material up to 5.9 inches

Round at 90 degrees
Up to 5.9 in (150 mm)
Rectangle at 90 degrees (H x W)
2.76 to 4.33 x 2.76 to 4.33 in (65 to 105 x 65 to 105 mm)
Request a Quote

Applications

Where It Works

  • Cutting larger-diameter bar and tough alloys where rigidity protects finish and blade life
  • Heavy-duty, high-volume cut-off that still needs a clean, accurate edge
  • Fabricators stepping up to 5.9 inch round capacity without giving up automation

Features

Built In

  • Cuts round stock up to 5.9 inches and squares to 4.33 inches with an 18 inch blade and a 25 HP drive, the heavy-duty end of the Continental line.
  • A solid, rigid frame cuts vibration to protect the blade and hold accuracy on tough alloys.
  • Fully digital controls deliver higher cutting rates, a clean surface finish, and accurate, repeatable parts.

Specifications

Technical Specs

Capacity

Round at 90 degrees
Up to 5.9 in (150 mm)
Rectangle at 90 degrees (H x W)
2.76 to 4.33 x 2.76 to 4.33 in (65 to 105 x 65 to 105 mm)

Drive and Controls

Controls
Fully digital CNC
Blade Drive Motor
25 HP
Blade Speed
30 to 150 rpm
Maximum Blade Diameter
18 in (460 mm)
Blade Width and Gage
0.106 x 0.089 in (2.7 x 2.25 mm)
Feed System
Servo motor and ball screw
Auto Index, Single Stroke
0.24 to 24 in (6 to 600 mm)
Auto Index, Multiple Stroke
2.4 to 236 in (60 to 6000 mm)

Machine

Hydraulic Pump
3 HP (2.23 kW)
Coolant System
Mist lubricator
Floor Space Required
123 x 285 in (3120 x 7230 mm)
Material Pass Height
35.5 in
Net Weight
9,260 lbs (4,200 kg)
Electrical
230V / 60Hz / 3ph
Total Amp Draw
77 A
Remnant Length Drop
2.4 in
Warranty
1 year standard, parts and service; optional 10-year available
