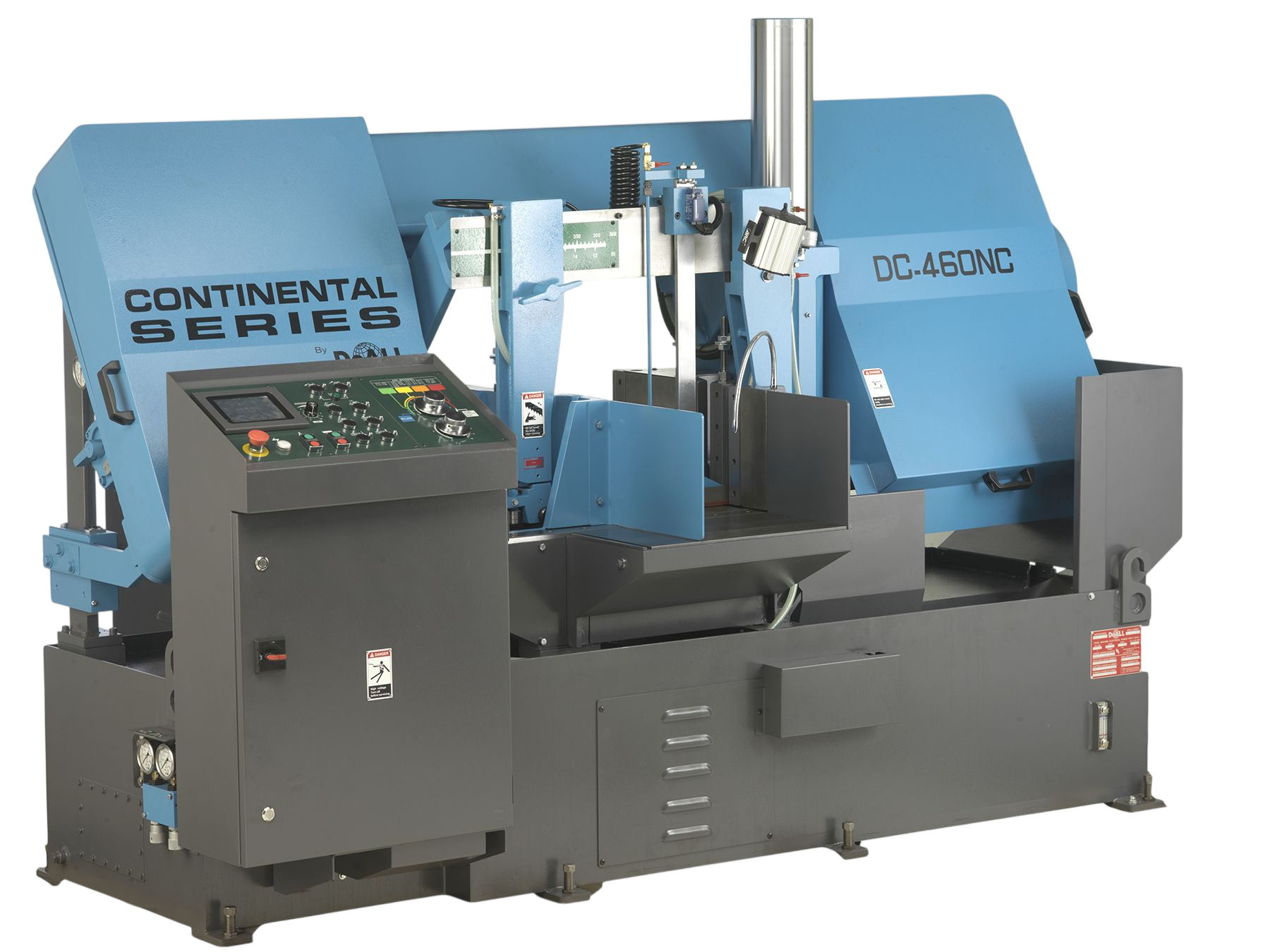

DoALL DC-460NC Production Band Saw
DoALL logo

DoALL DC-460NC Production Band Saw

Automated NC band saw for high-production cutting of a wide range of metals up to 18 inches round

Round at 90 degrees
18 in (460 mm)
Rectangle at 90 degrees (W x H)
20 x 18 in (510 x 460 mm)
Request a Quote

Applications

Where It Works

  • High-volume production cutting of large bar, tube, and structural stock
  • Repeat-length batch cutting with automatic cycles for consistent parts
  • Metalworking, automotive, and aerospace production floors

Features

Built In

  • Cuts round stock to 18 inches and rectangles to 20 by 18 inches for high-production work across a wide range of metals.
  • A PLC touchscreen runs full automatic cutting cycles, so one operator can keep the saw feeding to length.
  • A 10 HP band drive and 1.5 inch blade from 52 to 430 fpm hold accuracy on heavier sections.

Specifications

Technical Specs

Capacity

Round at 90 degrees
18 in (460 mm)
Rectangle at 90 degrees (W x H)
20 x 18 in (510 x 460 mm)

Drive and Controls

Control
PLC with touchscreen
Band Drive Motor
10 HP
Band Speed
52 to 430 fpm
Blade (Width x Length)
1.5 x 209 in

Machine

Material Pass Height
29.5 in
Floor Space (W x L x H)
102 x 89 x 71 in
Net Weight
6,284 lbs
Hydraulic Pump
2 HP, 22 gal reservoir
Coolant System
1/4 HP, 29 gal reservoir
Electrical
230V / 60Hz / 3ph
Total Amp Draw
33 A

Get a Quote

Ready to spec the DoALL DC-460NC Production Band Saw?

Tell us about your application and we will get you pricing, lead time, and the right configuration.
